图片上传至阿里云OSS

在Springboot项目中实现图片上传至阿里云OSS的功能的实现过程

1.开通阿里云对象存储OSS

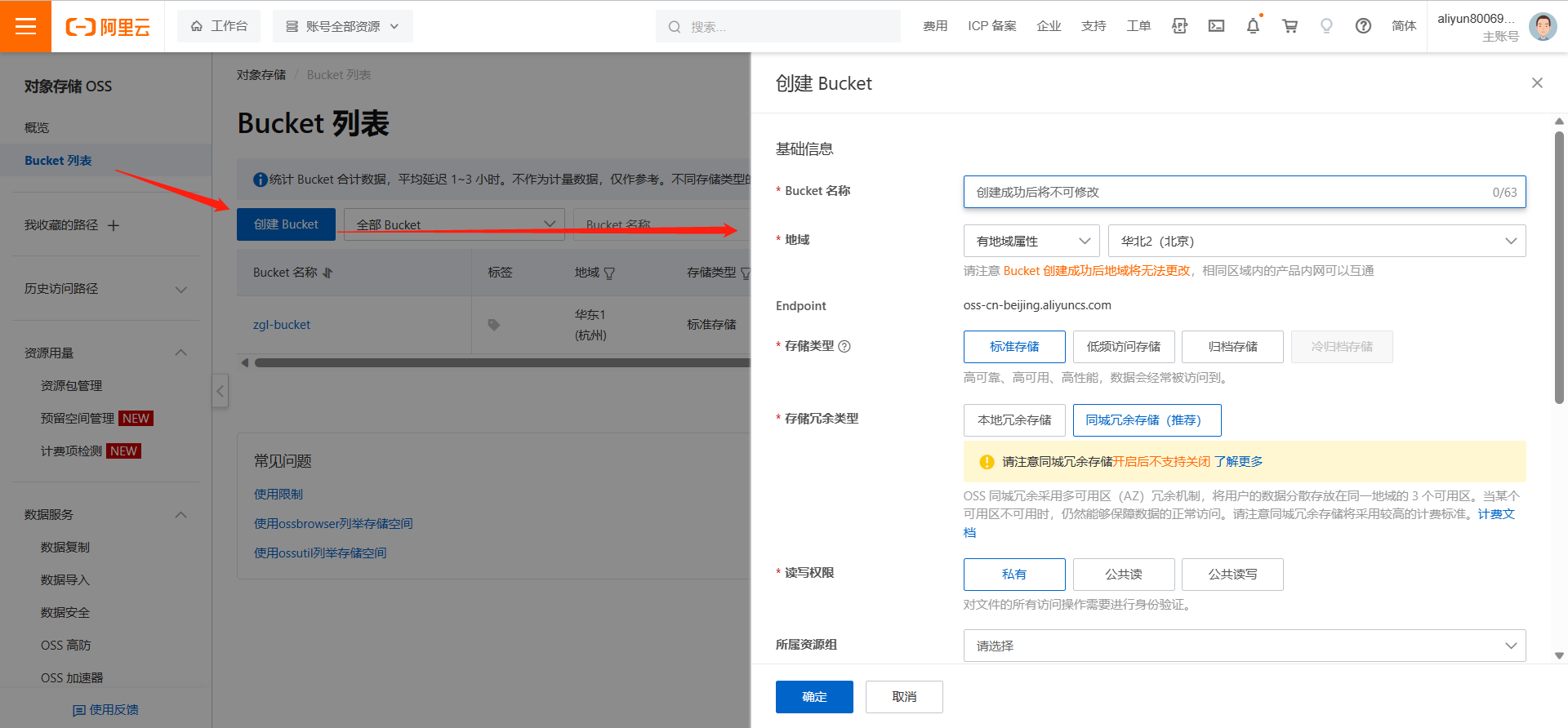

2.创建Bucket

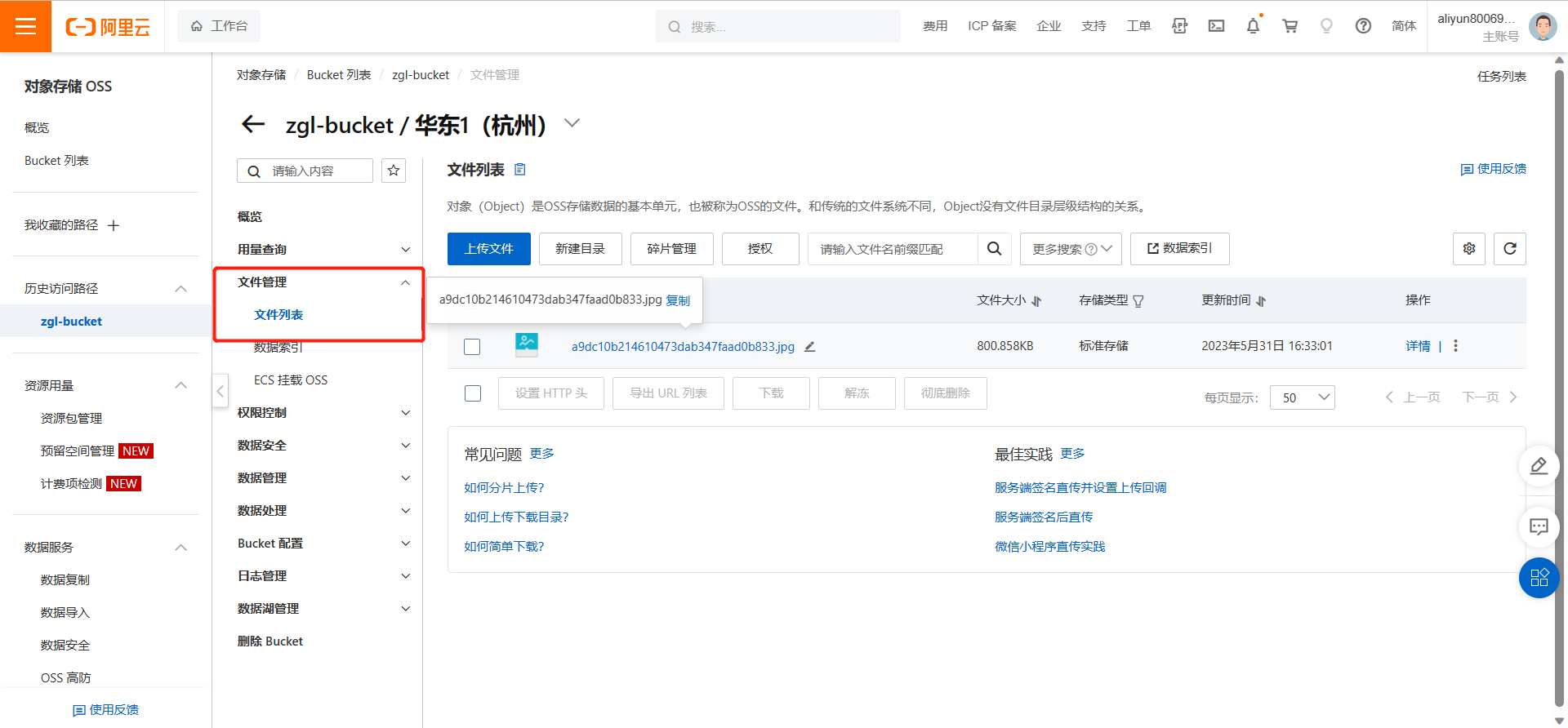

创建完成后在 文件管理-文件列表 中可以管理文件

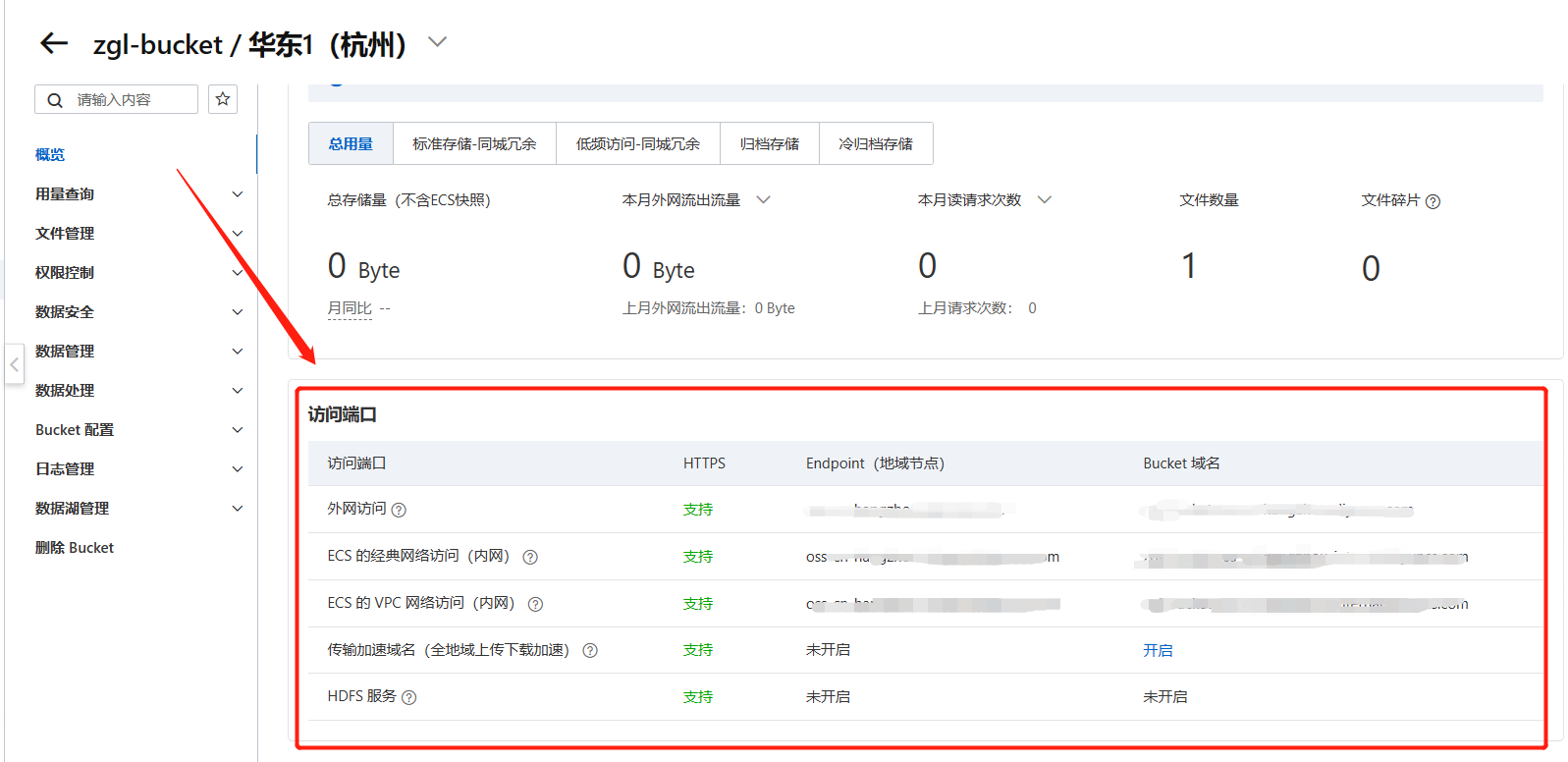

概览中可以查看访问端口

3.导入依赖

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
<dependency>
    <groupId>com.aliyun.oss</groupId>
    <artifactId>aliyun-sdk-oss</artifactId>
    <version>3.15.0</version>
</dependency>
<dependency>
    <groupId>commons-io</groupId>
    <artifactId>commons-io</artifactId>
    <version>2.11.0</version>
</dependency>
<dependency>
    <groupId>commons-beanutils</groupId>
    <artifactId>commons-beanutils</artifactId>
    <version>1.7.0</version>
</dependency>

4.编写工具类

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
package com.zgl.util;

import com.aliyun.oss.OSS;
import com.aliyun.oss.OSSClientBuilder;
import com.aliyun.oss.model.ObjectMetadata;
import org.apache.commons.io.FilenameUtils;
import org.springframework.web.multipart.MultipartFile;
import java.util.UUID;

public class OssUpload {
    /**
     * //需要的参数
     *     //Bucket域名
     *     //Endpoint（地域节点）
     *     //AccessKeyId
     *     //AccessKey Secret
     *     //Bucket的名字
     */
    public static final String ali_domain = "Bucket域名";
    public static final String endpoint = "Endpoint（地域节点）";
    public static final String accessKeyId = "AccessKeyId";
    public static final String accessKeySecret = "AccessKey Secret";
    public static final String bucketName = "buckerName";

    //静态方法
    public static String uploadImg(MultipartFile file){
        try {
            //1.生成文件名
            String originalFilename = file.getOriginalFilename();
            String extension = "."+FilenameUtils.getExtension(originalFilename);
            String uuid = UUID.randomUUID().toString().replaceAll("-", "");
            String fileName = uuid+extension;
            //2.创建OSS客户端对象
            OSS ossClient = new OSSClientBuilder().build(
                endpoint,
                accessKeyId,
                accessKeySecret);
            //3.设置请求头
            ObjectMetadata meta = new ObjectMetadata();
            meta.setContentType("image/jpg");
            //4.执行操作
            ossClient.putObject(
                    bucketName,
                    fileName,
                    file.getInputStream(),
                    meta
            );
            ossClient.shutdown();
            //5.返回访问地址
            return ali_domain + fileName;

        }catch(Exception e) {
            e.printStackTrace();
            return null;
        }
    }

}

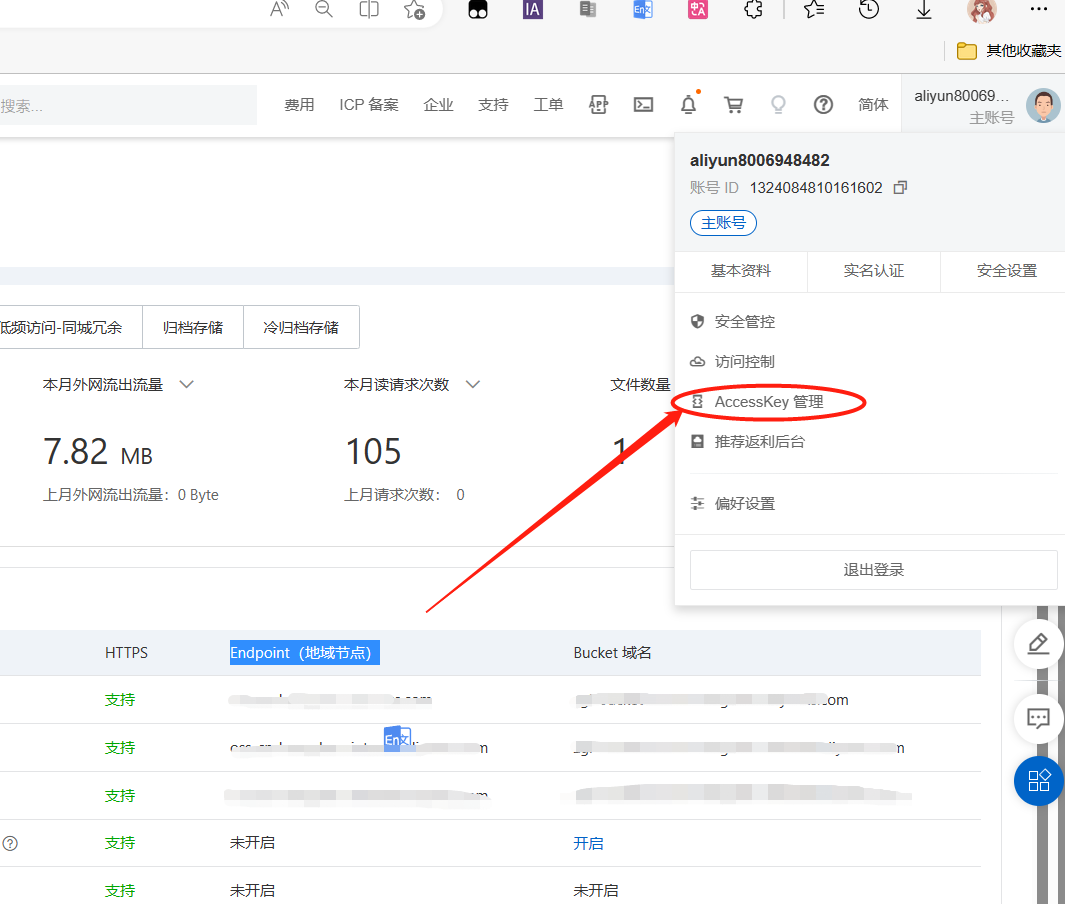

参数在阿里云的OSS管理控制台可以看到

其中AccessKeyId和AccessKey Secret可以在图片中的页面中得到

5.测试

Controller接口

1
2
3
4
5
6
7
@RestController
public class TestController {
    @PostMapping("/upload")
    public String upload(MultipartFile file){
        return OssUpload.uploadImg(file);
    }
}

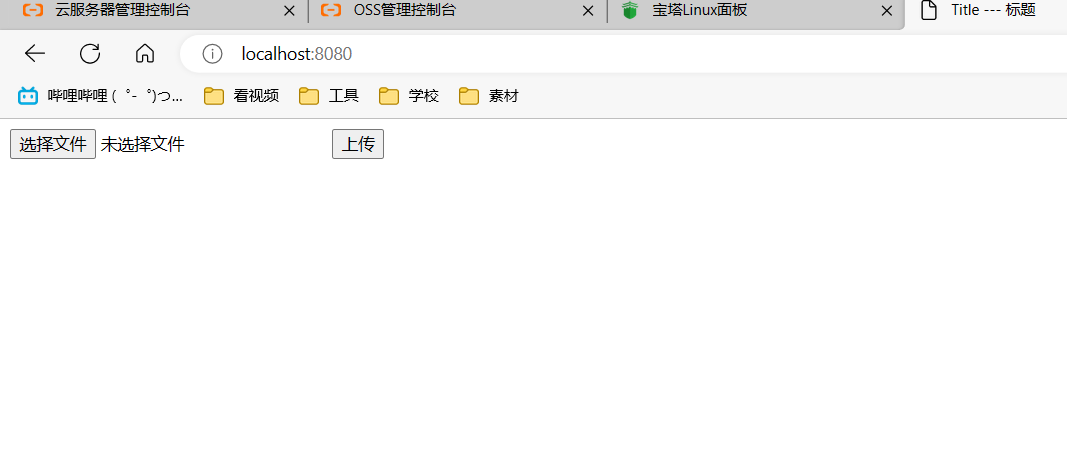

前端页面

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
</head>
<body>

    <form action="/upload" method="post" enctype="multipart/form-data">
        <input type="file" name="file" value="上传图片">
        <input type="submit" value="上传">
    </form>

</body>
</html>

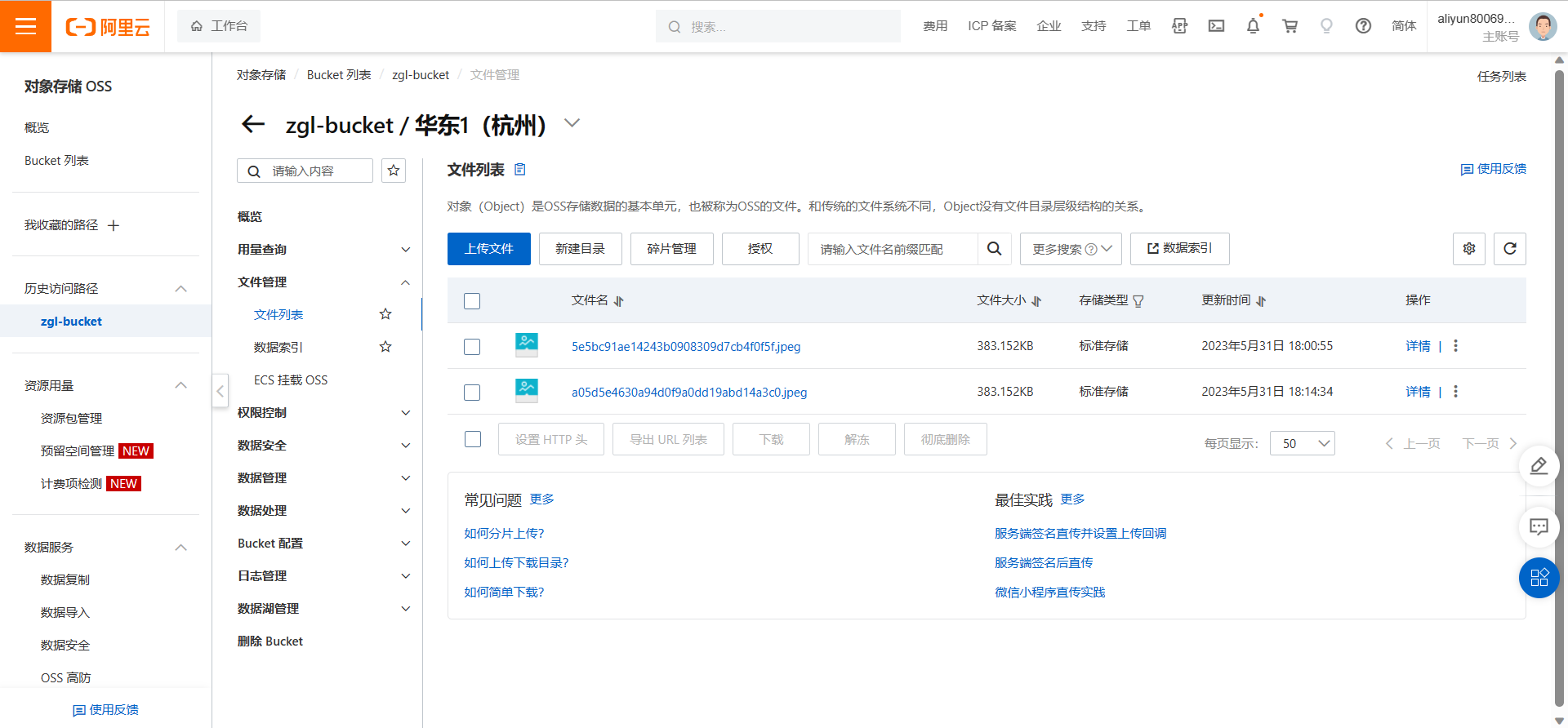

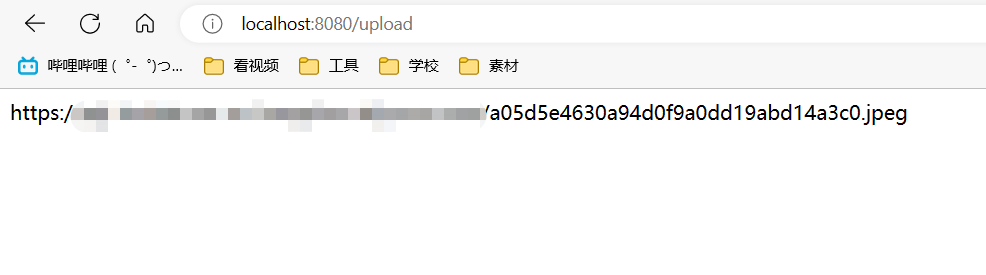

看到页面返回了图片的url,再到阿里云的控制台可以看到已经上传成功了

6.补充

规范化

原本是直接把配置信息写在类中，并直接调用工具类的静态方法。

1
2
3
4
5
6
7
/*
	public static final String ali_domain = "Bucket域名";
    public static final String endpoint = "Endpoint（地域节点）";
    public static final String accessKeyId = "AccessKeyId";
    public static final String accessKeySecret = "AccessKey Secret";
    public static final String bucketName = "buckerName";
*/

规范化的写法应该是

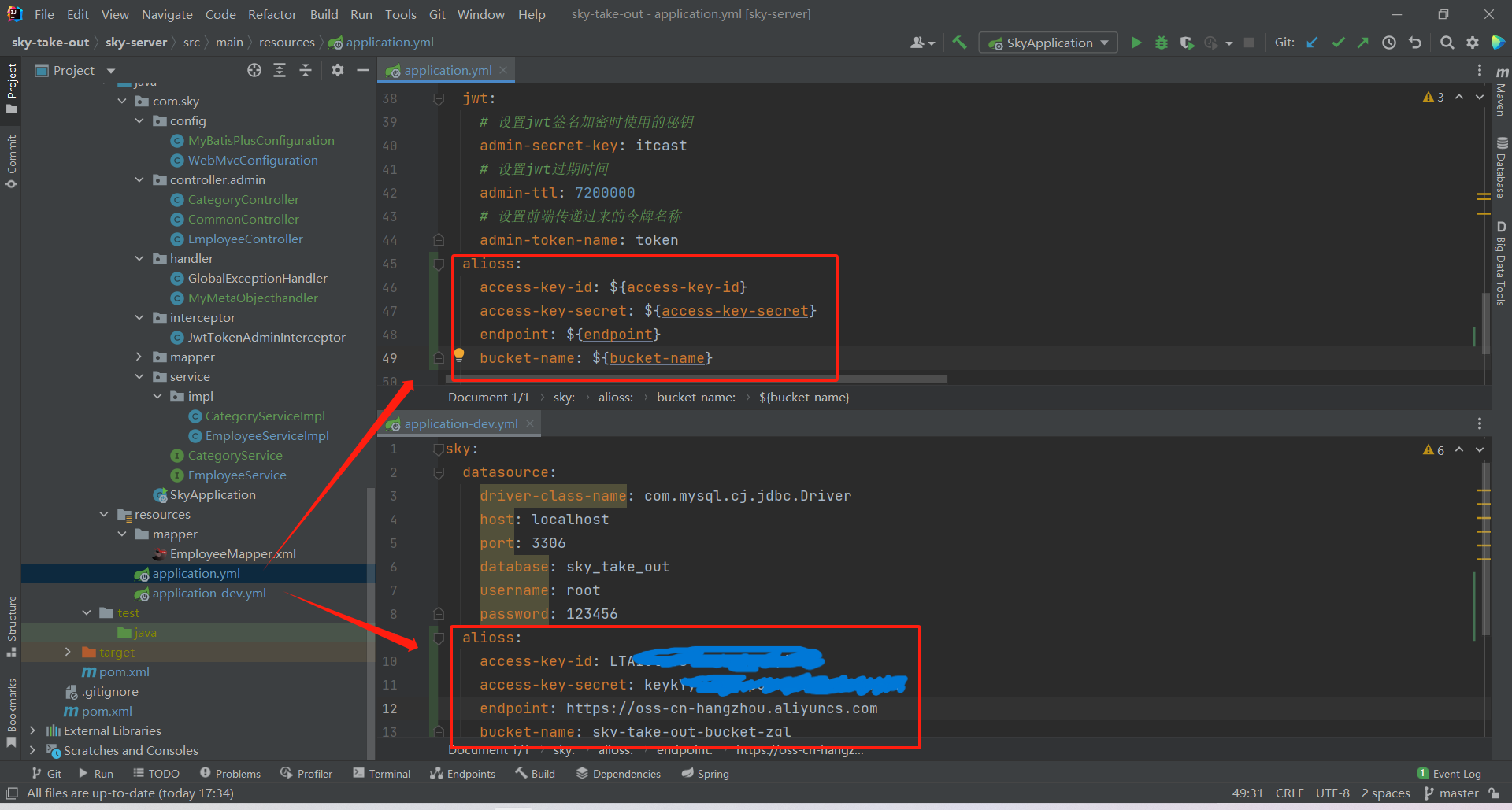

  1. 配置信息写在 application-dev.yaml 中，而 application.yaml 引用dev中的配置

    比如下面这个项目中的写法

    在application-dev.yaml中写配置信息，而在application.yaml中引用即可

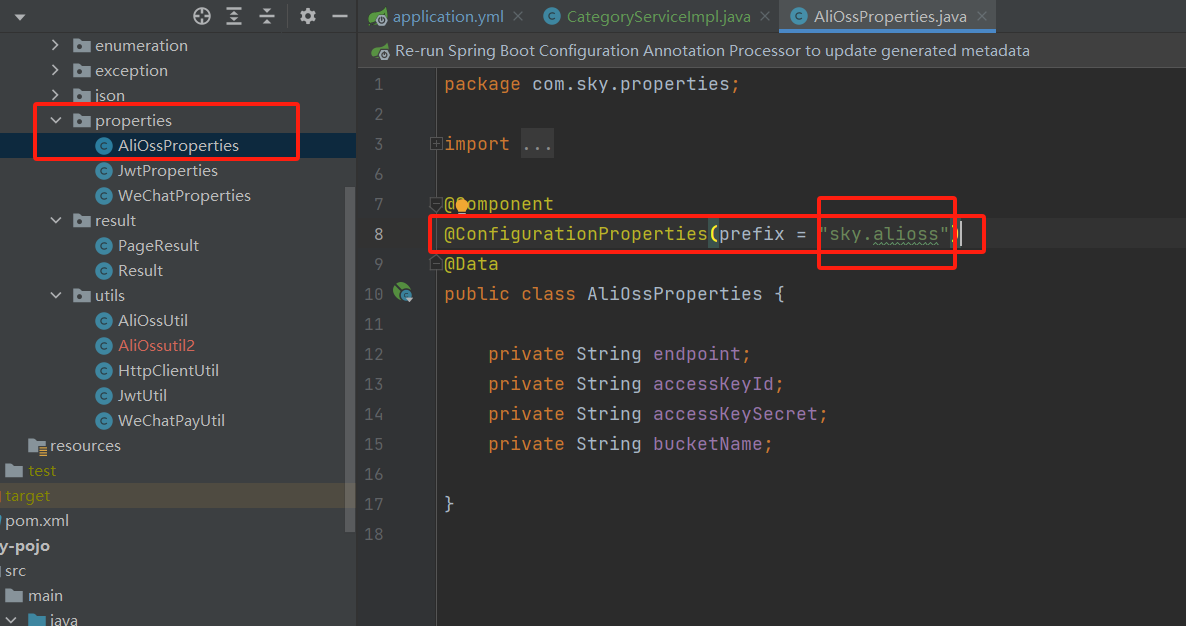

  2. 然后用一个配置属性类封装配置信息

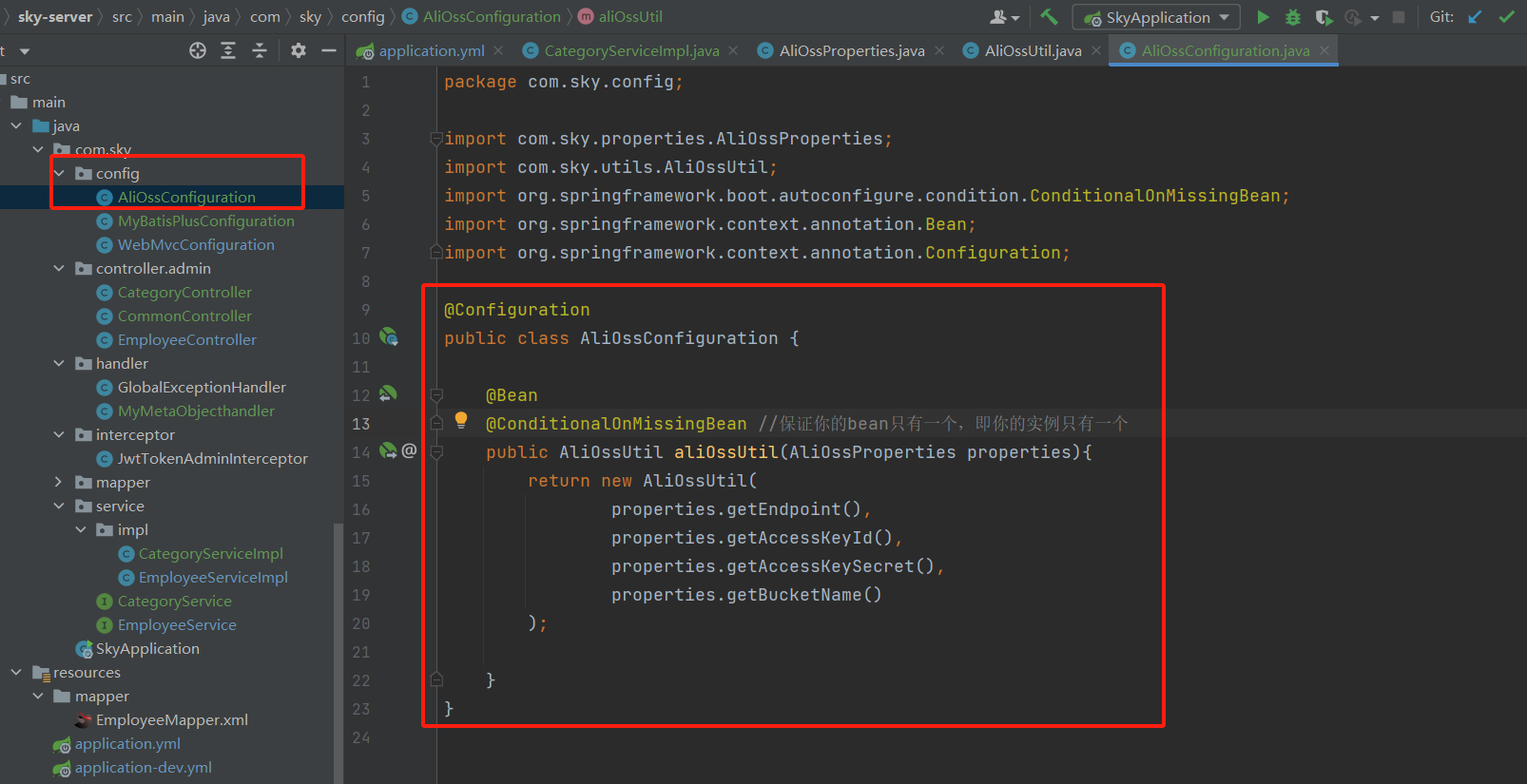

  3. 将工具类中的方法不使用静态，而是通过配置类，将工具类交给IOC容器管理

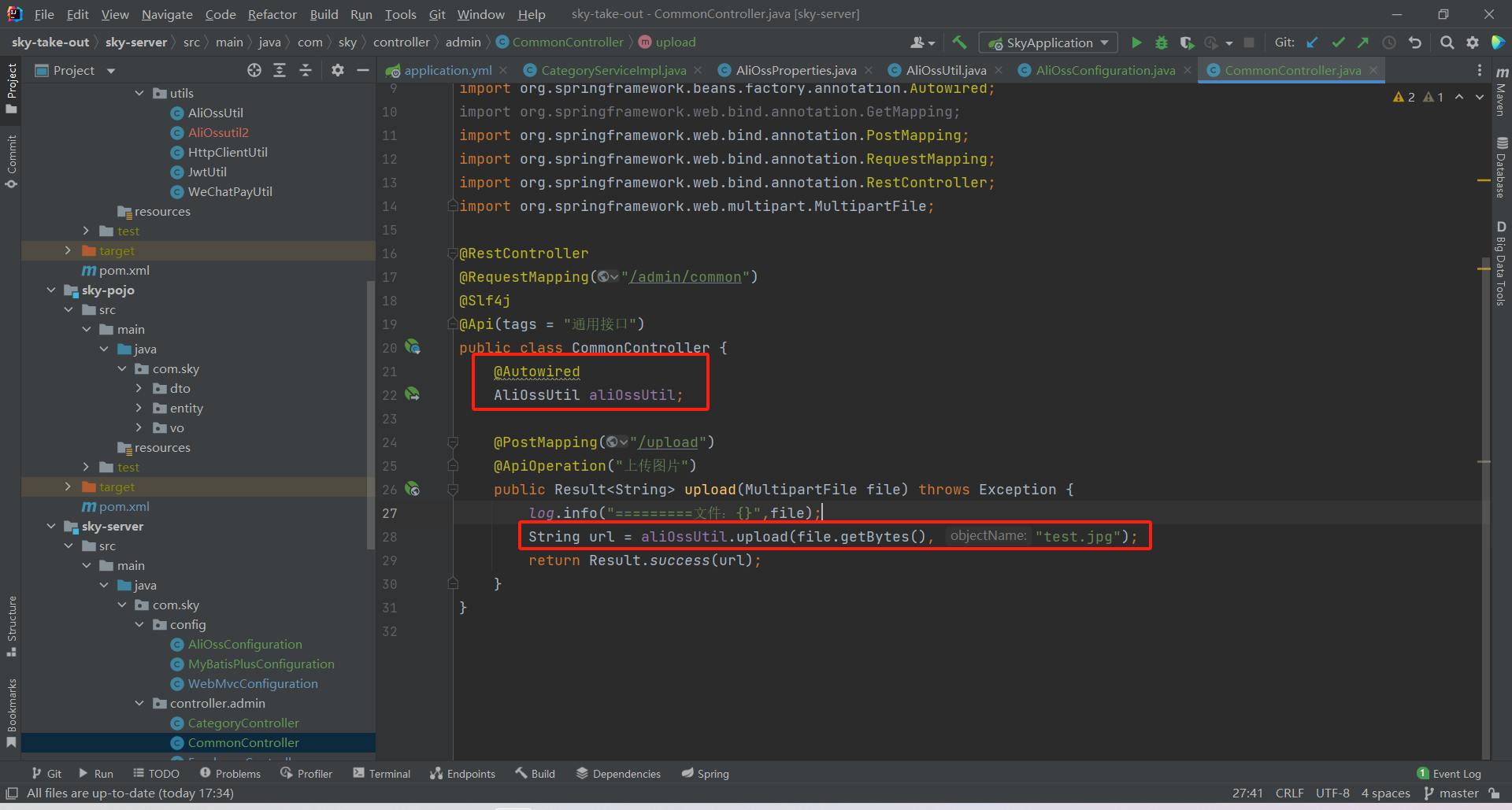

  4. 通过@Autowired注入工具类对象，调用方法

新版补充

文档中心：各语言SDK参考文档_对象存储 OSS-阿里云帮助中心 (aliyun.com)

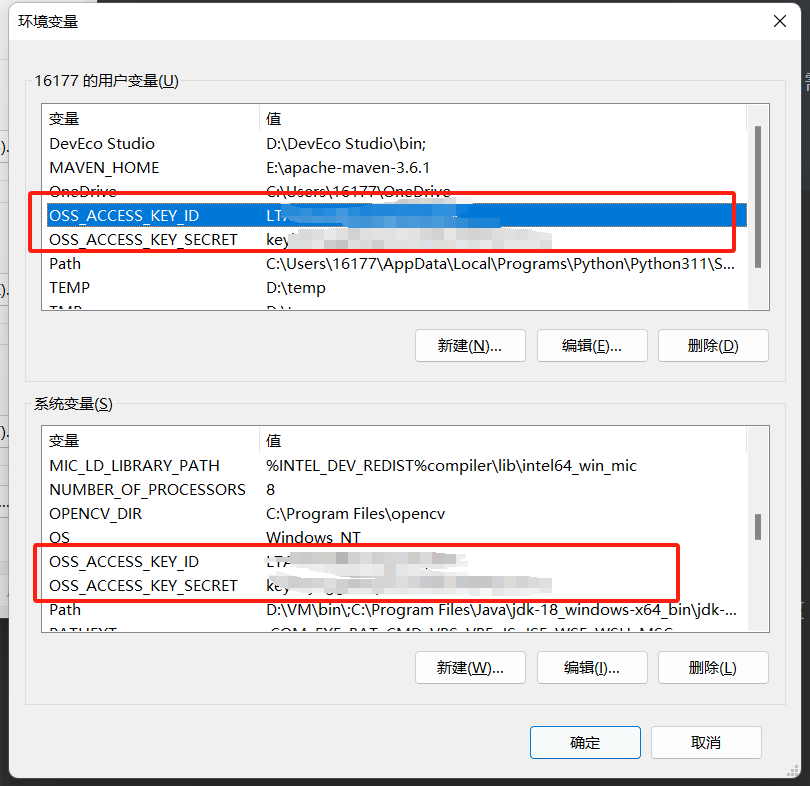

新版的OSS在OSS_ACCESS_KEY_ID和OSS_ACCESS_KEY_SECRET的操作上有改动，需要将它们加入到本地电脑的系统变量中

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
import com.aliyun.oss.ClientException;
import com.aliyun.oss.OSS;
import com.aliyun.oss.common.auth.*;
import com.aliyun.oss.OSSClientBuilder;
import com.aliyun.oss.OSSException;
import com.aliyun.oss.model.PutObjectRequest;
import com.aliyun.oss.model.PutObjectResult;
import org.springframework.web.multipart.MultipartFile;

import java.io.File;
public class AliOssUtil {

    public static void upload(MultipartFile multipartFile) throws Exception {
        // Endpoint以华东1（杭州）为例，其它Region请按实际情况填写。
        String endpoint = "https://oss-cn-hangzhou.aliyuncs.com";
        // 从环境变量中获取访问凭证。运行本代码示例之前
        //请确保已设置环境变量OSS_ACCESS_KEY_ID和OSS_ACCESS_KEY_SECRET。
        EnvironmentVariableCredentialsProvider credentialsProvider =
            CredentialsProviderFactory.newEnvironmentVariableCredentialsProvider();
        // 填写Bucket名称，例如examplebucket。
        String bucketName = "sky-take-out-bucket-zgl";
        // 填写Object完整路径，完整路径中不能包含Bucket名称
        // 例如exampledir/exampleobject.txt。
        String objectName = "test.png";


        // 创建OSSClient实例。
        OSS ossClient = new OSSClientBuilder()
            .build(endpoint, credentialsProvider);

        try {
            // 创建PutObjectRequest对象。
            PutObjectRequest putObjectRequest = new PutObjectRequest(
                bucketName, objectName,
                multipartFile.getInputStream());
            // 如果需要上传时设置存储类型和访问权限，请参考以下示例代码。
            // ObjectMetadata metadata = new ObjectMetadata();
            // metadata.setHeader(OSSHeaders.OSS_STORAGE_CLASS,
            //					StorageClass.Standard.toString());
            // metadata.setObjectAcl(CannedAccessControlList.Private);
            // putObjectRequest.setMetadata(metadata);

            // 上传文件。
            PutObjectResult result = ossClient.putObject(putObjectRequest);
        } catch (OSSException oe) {
            System.out.println("Caught an OSSException, "+
                               "which means your request made it to OSS"+
                               "but was rejected with an error response"+
                               " for some reason.");
            System.out.println("Error Message:" + oe.getErrorMessage());
            System.out.println("Error Code:" + oe.getErrorCode());
            System.out.println("Request ID:" + oe.getRequestId());
            System.out.println("Host ID:" + oe.getHostId());
        } catch (ClientException ce) {
            System.out.println("Caught an ClientException, "+
                               "which means the client encountered "
                    + "a serious internal problem while "+
                               "trying to communicate with OSS, "
                    + "such as not being able to access the network.");
            System.out.println("Error Message:" + ce.getMessage());
        } finally {
            if (ossClient != null) {
                ossClient.shutdown();
            }
        }
    }
}
1
2
3
4
5
<dependency>
    <groupId>com.aliyun.oss</groupId>
    <artifactId>aliyun-sdk-oss</artifactId>
    <version>3.15.1</version>
</dependency>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
<dependency>
    <groupId>javax.xml.bind</groupId>
    <artifactId>jaxb-api</artifactId>
    <version>2.3.1</version>
</dependency>
<dependency>
    <groupId>javax.activation</groupId>
    <artifactId>activation</artifactId>
    <version>1.1.1</version>
</dependency>
<!-- no more than 2.3.3-->
<dependency>
    <groupId>org.glassfish.jaxb</groupId>
    <artifactId>jaxb-runtime</artifactId>
    <version>2.3.3</version>
</dependency>
