微信支付

学习使用微信的jsapi支付，即微信内置浏览器或者小程序唤起微信支付

因为没有办法申请商户号，所以无法验证是否正确，只能先记录下代码

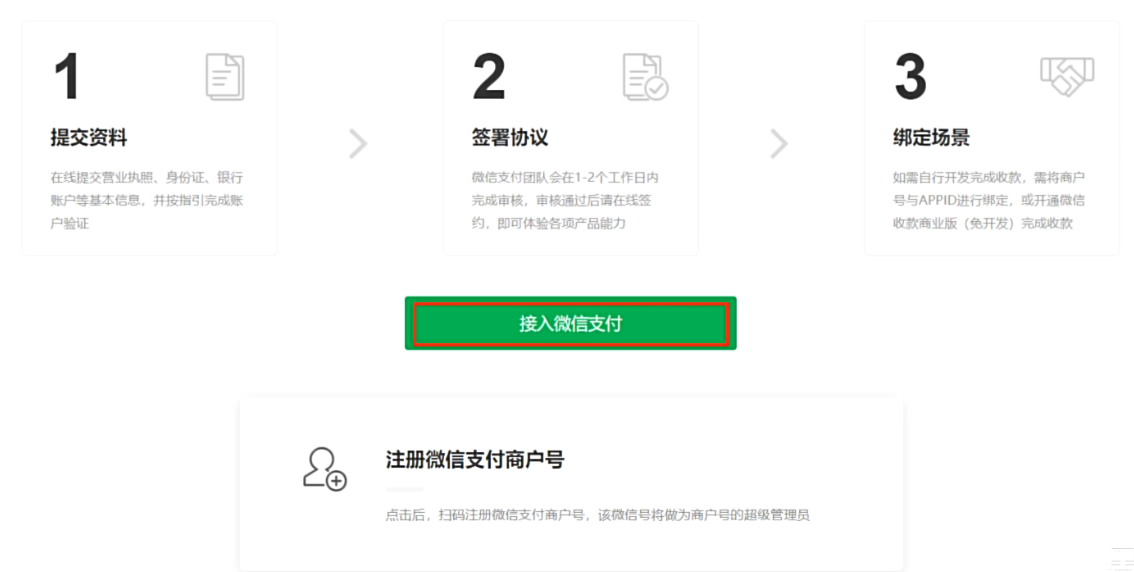

1.注册绑定商户号

微信支付 - 中国领先的第三方支付平台 ｜ 微信支付提供安全快捷的支付方式 (qq.com)

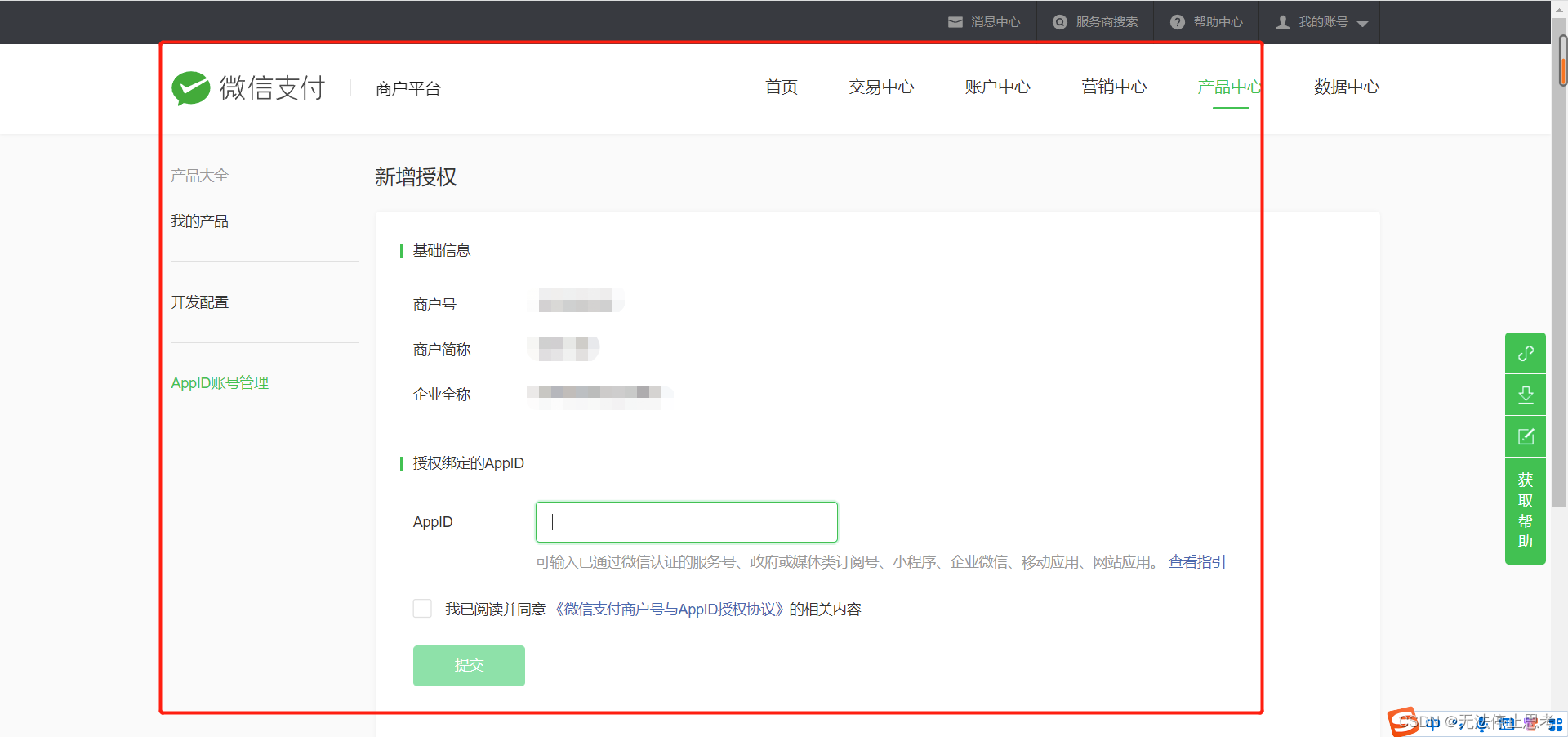

商户号后台绑定小程序的AppID

2.导入依赖

1
2
3
4
5
<dependency>
    <groupId>com.github.wechatpay-apiv3</groupId>
    <artifactId>wechatpay-apache-httpclient</artifactId>
    <version>0.4.8</version>
</dependency>

3.准备参数

application.yml

1
2
3
4
5
6
7
8
9
10
11
sky:
  wechat:
    appid: ${sky.wechat.appid}
    secret: ${sky.wechat.secret}
    mchid: ${sky.wechat.mchid}
    mchSerialNo: ${sky.wechat.mchSerialNo}
    privateKeyFilePath: ${sky.wechat.privateKeyFilePath}
    apiV3Key: ${sky.wechat.apiV3Key}
    weChatPayCertFilePath: ${sky.wechat.weChatPayCertFilePath}
    notifyUrl: ${sky.wechat.notifyUrl}
    refundNotifyUrl: ${sky.wechat.refundNotifyUrl}

application-dev.yml

1
2
3
4
5
6
7
8
9
10
11
sky:
  wechat:
    appid: 小程序的appid
    secret: 小程序的秘钥
    mchid: 商户号
    mchSerialNo: 商户API证书的证书序列号
    privateKeyFilePath: 商户私钥文件绝对路径
    apiV3Key: 证书解密的密钥绝对路径
    weChatPayCertFilePath: 平台证书绝对路径
    notifyUrl: 支付成功的回调地址
    refundNotifyUrl: 退款成功的回调地址

参数配置类 WeChatProperties

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
import lombok.Data;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.stereotype.Component;

@Component
@ConfigurationProperties(prefix = "sky.wechat")
@Data
public class WeChatProperties {

    private String appid; //小程序的appid
    private String secret; //小程序的秘钥
    private String mchid; //商户号
    private String mchSerialNo; //商户API证书的证书序列号
    private String privateKeyFilePath; //商户私钥文件
    private String apiV3Key; //证书解密的密钥
    private String weChatPayCertFilePath; //平台证书
    private String notifyUrl; //支付成功的回调地址
    private String refundNotifyUrl; //退款成功的回调地址

}

4.小程序下单生成预支付交易单

小程序下单 - 小程序支付 | 微信支付商户文档中心 (qq.com)

利用已经封装好的工具类来进行操作:WeChatPayUtil.java

OrdersPaymentDTO

1
2
3
4
5
6
7
8
9
@Data
public class OrdersPaymentDTO implements Serializable {
    //订单号
    private String orderNumber;

    //付款方式
    private Integer payMethod;

}

Controller

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
/**
 * 订单支付
 *
 * @param ordersPaymentDTO
 * @return
 */
@PutMapping("/payment")
@ApiOperation("订单支付")
public Result<OrderPaymentVO> payment(@RequestBody OrdersPaymentDTO ordersPaymentDTO)
    throws Exception {
    log.info("订单支付：{}", ordersPaymentDTO);
    OrderPaymentVO orderPaymentVO = orderService.payment(ordersPaymentDTO);
    log.info("生成预支付交易单：{}", orderPaymentVO);
    return Result.success(orderPaymentVO);
}

Service

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
public interface OrderService {
    OrderSubmitVO submitOrder(OrdersSubmitDTO ordersSubmitDTO);
    /**
     * 订单支付
     * @param ordersPaymentDTO
     * @return
     */
    OrderPaymentVO payment(OrdersPaymentDTO ordersPaymentDTO) throws Exception;

    /**
     * 支付成功，修改订单状态
     * @param outTradeNo
     */
    void paySuccess(String outTradeNo);

}

ServiceImpl

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
/**
 * 订单支付
 *
 * @param ordersPaymentDTO
 * @return
 */
public OrderPaymentVO payment(OrdersPaymentDTO ordersPaymentDTO) throws Exception {
    // 当前登录用户id
    Long userId = BaseContext.getCurrentId();
    User user = userMapper.selectById(userId);

    //调用微信支付接口，生成预支付交易单
    JSONObject jsonObject = weChatPayUtil.pay(
            ordersPaymentDTO.getOrderNumber(), //商户订单号
            new BigDecimal(0.01), //支付金额，单位 元
            "苍穹外卖订单", //商品描述
            user.getOpenid() //微信用户的openid
    );

    if (jsonObject.getString("code") != null
        && jsonObject.getString("code").equals("ORDERPAID")) {
        throw new OrderBusinessException("该订单已支付");
    }

    OrderPaymentVO vo = jsonObject.toJavaObject(OrderPaymentVO.class);
    vo.setPackageStr(jsonObject.getString("package"));

    return vo;
}

/**
 * 支付成功，修改订单状态
 *
 * @param outTradeNo
 */
public void paySuccess(String outTradeNo) {

    // 根据订单号查询订单
    LambdaQueryWrapper<Orders> wrapper = new LambdaQueryWrapper<>();
    wrapper.eq(Orders::getNumber,outTradeNo);
    Orders ordersDB = orderMapper.selectOne(wrapper);

    // 根据订单id更新订单的状态、支付方式、支付状态、结账时间
    Orders orders = Orders.builder()
            .id(ordersDB.getId())
            .status(Orders.TO_BE_CONFIRMED)
            .payStatus(Orders.PAID)
            .checkoutTime(LocalDateTime.now())
            .build();

    orderMapper.updateById(orders);
}

OrderPaymentVO

1
2
3
4
5
6
7
8
9
10
11
12
13
@Data
@Builder
@NoArgsConstructor
@AllArgsConstructor
public class OrderPaymentVO implements Serializable {

    private String nonceStr; //随机字符串
    private String paySign; //签名
    private String timeStamp; //时间戳
    private String signType; //签名算法
    private String packageStr; //统一下单接口返回的 prepay_id 参数值

}

PayNotifyController

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
/**
 * 支付回调相关接口
 */
@RestController
@RequestMapping("/notify")
@Slf4j
public class PayNotifyController {
    @Autowired
    private OrderService orderService;
    @Autowired
    private WeChatProperties weChatProperties;

    /**
     * 支付成功回调
     *
     * @param request
     */
    @RequestMapping("/paySuccess")
    public void paySuccessNotify(HttpServletRequest request, HttpServletResponse response)
        throws Exception {
        //读取数据
        String body = readData(request);
        log.info("支付成功回调：{}", body);

        //数据解密
        String plainText = decryptData(body);
        log.info("解密后的文本：{}", plainText);

        JSONObject jsonObject = JSON.parseObject(plainText);
        String outTradeNo = jsonObject.getString("out_trade_no");//商户平台订单号
        String transactionId = jsonObject.getString("transaction_id");//微信支付交易号

        log.info("商户平台订单号：{}", outTradeNo);
        log.info("微信支付交易号：{}", transactionId);

        //业务处理，修改订单状态、来单提醒
        orderService.paySuccess(outTradeNo);

        //给微信响应
        responseToWeixin(response);
    }

    /**
     * 读取数据
     *
     * @param request
     * @return
     * @throws Exception
     */
    private String readData(HttpServletRequest request) throws Exception {
        BufferedReader reader = request.getReader();
        StringBuilder result = new StringBuilder();
        String line = null;
        while ((line = reader.readLine()) != null) {
            if (result.length() > 0) {
                result.append("\n");
            }
            result.append(line);
        }
        return result.toString();
    }

    /**
     * 数据解密
     *
     * @param body
     * @return
     * @throws Exception
     */
    private String decryptData(String body) throws Exception {
        JSONObject resultObject = JSON.parseObject(body);
        JSONObject resource = resultObject.getJSONObject("resource");
        String ciphertext = resource.getString("ciphertext");
        String nonce = resource.getString("nonce");
        String associatedData = resource.getString("associated_data");

        AesUtil aesUtil = new
            AesUtil(weChatProperties.getApiV3Key().getBytes(StandardCharsets.UTF_8));
        //密文解密
        String plainText =
            	aesUtil.decryptToString(associatedData.getBytes(StandardCharsets.UTF_8),
                nonce.getBytes(StandardCharsets.UTF_8),
                ciphertext);

        return plainText;
    }

    /**
     * 给微信响应
     * @param response
     */
    private void responseToWeixin(HttpServletResponse response) throws Exception{
        response.setStatus(200);
        HashMap<Object, Object> map = new HashMap<>();
        map.put("code", "SUCCESS");
        map.put("message", "SUCCESS");
        response.setHeader("Content-type", ContentType.APPLICATION_JSON.toString());
        response.getOutputStream()
				.write(JSONUtils.toJSONString(map)
				.getBytes(StandardCharsets.UTF_8));
        response.flushBuffer();
    }
}

5.小程序调起支付

小程序调起支付 - 小程序支付 | 微信支付商户文档中心 (qq.com)

调用wx.requestPayment(OBJECT)发起微信支付

请求示例：

1
2
3
4
5
6
7
8
9
10
11
12
13
wx.requestPayment
2(
3  {
4    "timeStamp": "1414561699",
5    "nonceStr": "5K8264ILTKCH16CQ2502SI8ZNMTM67VS",
6    "package": "prepay_id=wx201410272009395522657a690389285100",
7    "signType": "RSA",
8    "paySign": "xxxx",
9    "success":function(res){},
10    "fail":function(res){},
11    "complete":function(res){}
12  }
13)
