WebSocket

2023-10-31

这是一个使用WebSocket，在客户端与服务端之间建立长连接的入门案例。结合Spring Task定时任务，实现双向实时通信。

1.导入依赖

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-websocket</artifactId>
</dependency>

2.前端页面

<!DOCTYPE HTML>
<html>
<head>
    <meta charset="UTF-8">
    <title>WebSocket Demo</title>
</head>
<body>
    <input id="text" type="text" />
    <button onclick="send()">发送消息</button>
    <button onclick="closeWebSocket()">关闭连接</button>
    <div id="message">
    </div>
</body>
<script type="text/javascript">
    var websocket = null;
    var clientId = Math.random().toString(36).substr(2);
    //判断当前浏览器是否支持WebSocket
    if('WebSocket' in window){
        //连接WebSocket节点
        websocket = new WebSocket("ws://localhost:8080/ws/"+clientId);
    }
    else{
        alert('Not support websocket')
    }

    //连接发生错误的回调方法
    websocket.onerror = function(){
        setMessageInnerHTML("error");
    };

    //连接成功建立的回调方法
    websocket.onopen = function(){
        setMessageInnerHTML("连接成功");
    }

    //接收到消息的回调方法
    websocket.onmessage = function(event){
        setMessageInnerHTML(event.data);
    }

    //连接关闭的回调方法
    websocket.onclose = function(){
        setMessageInnerHTML("close");
    }

    //监听窗口关闭事件，当窗口关闭时，主动去关闭websocket连接
    //防止连接还没断开就关闭窗口，server端会抛异常。
    window.onbeforeunload = function(){
        websocket.close();
    }

    //将消息显示在网页上
    function setMessageInnerHTML(innerHTML){
        document.getElementById('message').innerHTML += innerHTML + '<br/>';
    }

    //发送消息
    function send(){
        var message = document.getElementById('text').value;
        websocket.send(message);
    }

	//关闭连接
    function closeWebSocket() {
        websocket.close();
    }
</script>
</html>

3.WebSocketServer

单独开一个包websocket放WebSocketServer

import org.springframework.stereotype.Component;
import javax.websocket.OnClose;
import javax.websocket.OnMessage;
import javax.websocket.OnOpen;
import javax.websocket.Session;
import javax.websocket.server.PathParam;
import javax.websocket.server.ServerEndpoint;
import java.util.Collection;
import java.util.HashMap;
import java.util.Map;

/**
 * WebSocket服务
 */
@Component
@ServerEndpoint("/ws/{sid}")
public class WebSocketServer {

    //存放会话对象
    private static Map<String, Session> sessionMap = new HashMap();

    /**
     * 连接建立成功调用的方法
     */
    @OnOpen
    public void onOpen(Session session, @PathParam("sid") String sid) {
        System.out.println("客户端：" + sid + "建立连接");
        sessionMap.put(sid, session);
    }

    /**
     * 收到客户端消息后调用的方法
     *
     * @param message 客户端发送过来的消息
     */
    @OnMessage
    public void onMessage(String message, @PathParam("sid") String sid) {
        System.out.println("收到来自客户端：" + sid + "的信息:" + message);
    }

    /**
     * 连接关闭调用的方法
     *
     * @param sid
     */
    @OnClose
    public void onClose(@PathParam("sid") String sid) {
        System.out.println("连接断开:" + sid);
        sessionMap.remove(sid);
    }

    /**
     * 群发
     *
     * @param message
     */
    public void sendToAllClient(String message) {
        Collection<Session> sessions = sessionMap.values();
        for (Session session : sessions) {
            try {
                //服务器向客户端发送消息
                session.getBasicRemote().sendText(message);
            } catch (Exception e) {
                e.printStackTrace();
            }
        }
    }
}

4.配置类

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.socket.server.standard.ServerEndpointExporter;

/**
 * WebSocket配置类，用于注册WebSocket的Bean
 */
@Configuration
public class WebSocketConfiguration {

    @Bean
    public ServerEndpointExporter serverEndpointExporter() {
        return new ServerEndpointExporter();
    }

}

5.自定义定时任务

import com.sky.websocket.WebSocketServer;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.scheduling.annotation.Scheduled;
import org.springframework.stereotype.Component;
import java.time.LocalDateTime;
import java.time.format.DateTimeFormatter;

@Component
public class WebSocketTask {
    @Autowired
    private WebSocketServer webSocketServer;

    /**
     * 通过WebSocket每隔5秒向客户端发送消息
     */
    @Scheduled(cron = "0/5 * * * * ?")
    public void sendMessageToClient() {
        webSocketServer.sendToAllClient(
            "这是来自服务端的消息："
            + DateTimeFormatter.ofPattern("HH:mm:ss").format(LocalDateTime.now())
        );
    }
}

6.运行效果

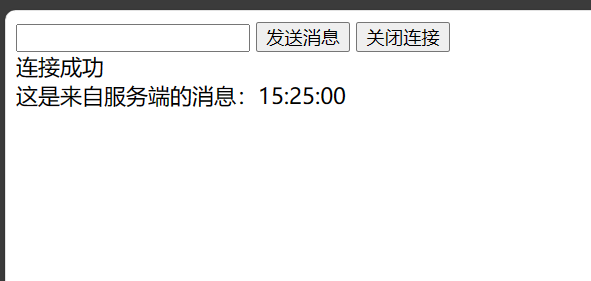

打开前端页面，显示连接成功

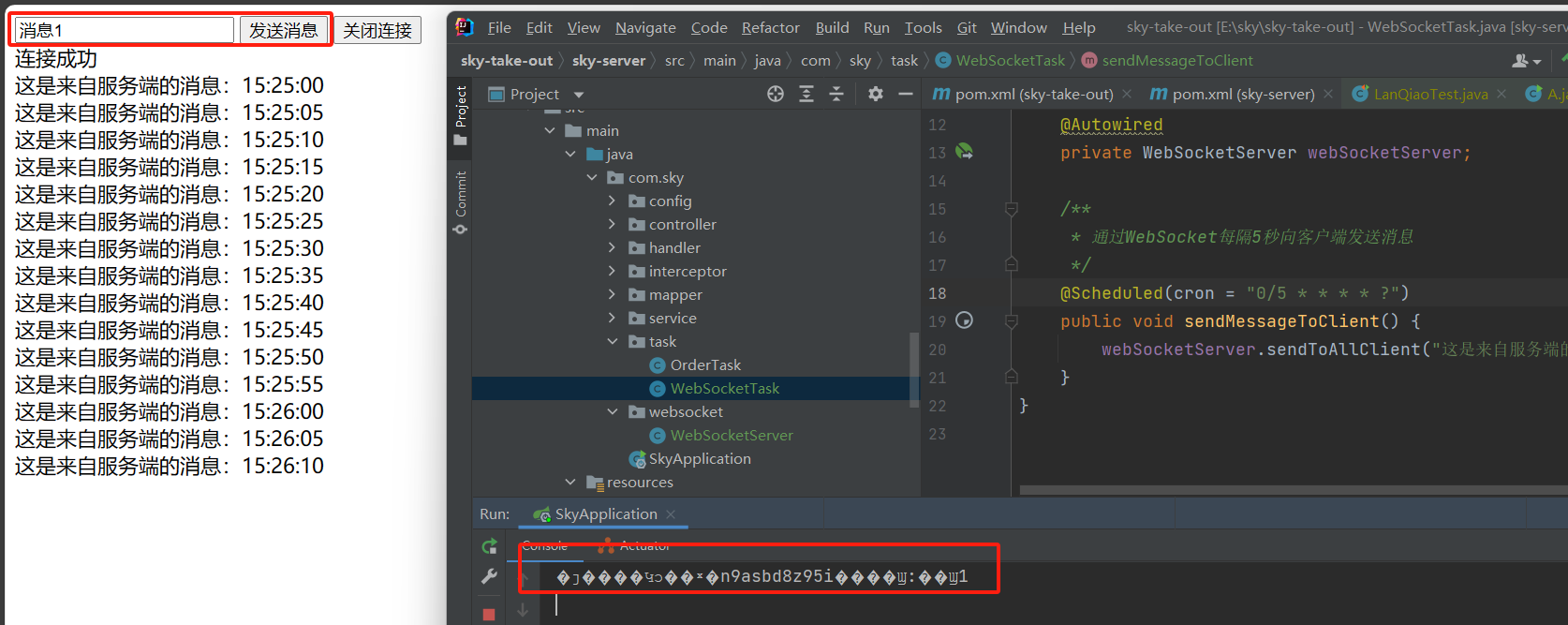

发送消息到服务器，服务器也能成功接收

点击关闭连接，服务器也正常显示客户端xxx已关闭
